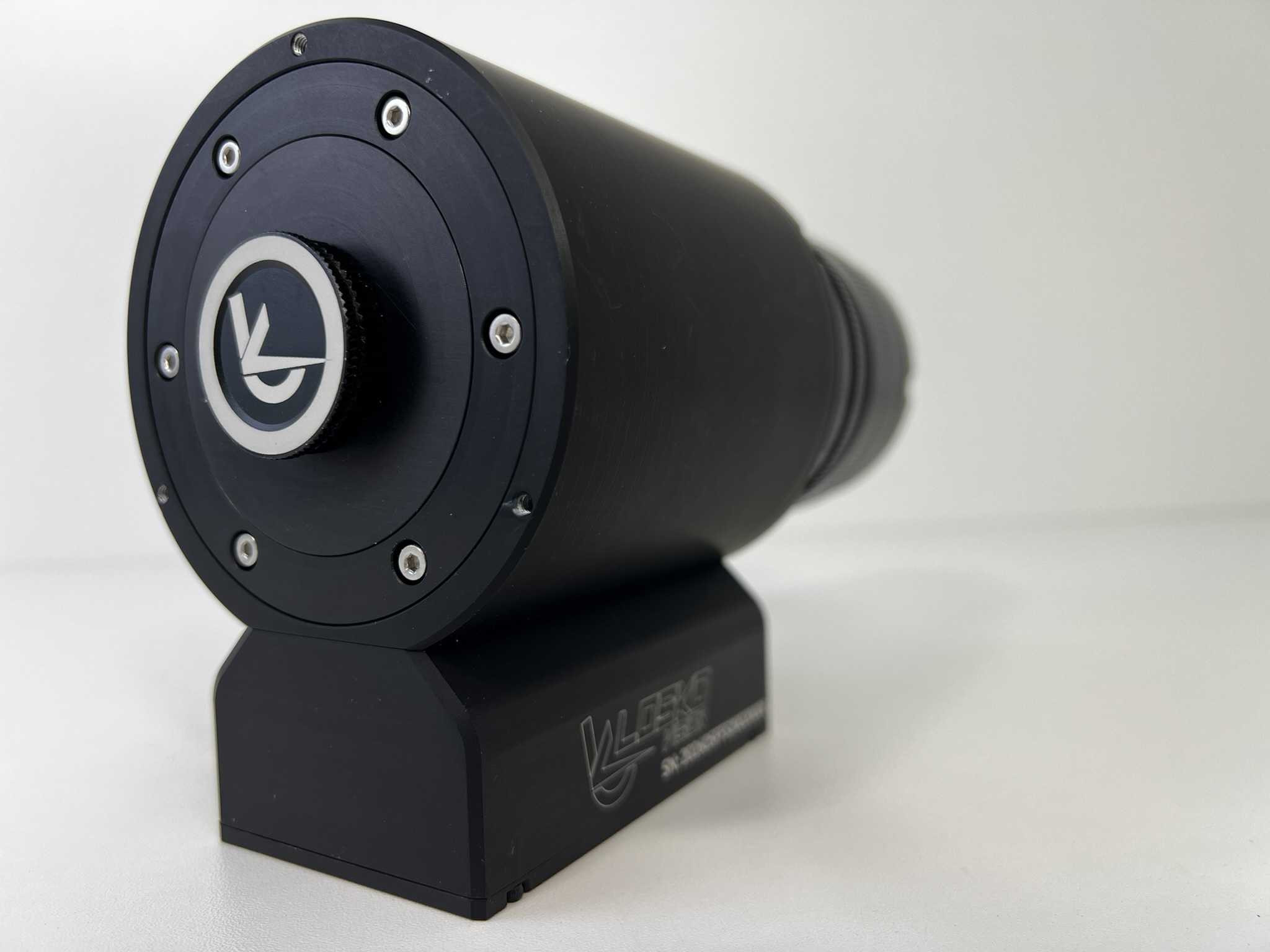

LUMINA is a fully integrated scientific image intensifier that mounts in front of the sCMOS or CCD camera you already use. It adds single-photon sensitivity, nanosecond-scale gating, and cooled dark-count suppression — without replacing the camera or optical path you rely on.
Every component of the Lumina Intensifier is designed around real research needs — from long low-light integrations to demanding beam-time environments.
Atomic layer deposition coating on the dual-stage chevron MCP is designed to extend tube lifetime and support faster channel recharging at high count rates. (Figure to be confirmed against Photek datasheet.)
Customer-exchangeable 1:1 (25 mm) or 1:2 (40 mm) relay optics, F0.9, without factory service. C-mount front for standard input lenses; illuminates sensor formats up to 1 inch.
Optional photocathode cooling reduces dark count rate by up to 500×, down to roughly 10 photons/cm²/s — built for photon counting, coincidence imaging, and long low-light integrations.
Electro-optical photocathode gating for time-domain imaging, background rejection, and synchronised acquisition against a pulsed source.
Integrated high-voltage supply and programmable gain control. No external power supplies or gate drivers needed.
Deployed at neutron beamlines and synchrotron facilities, where equipment must withstand harsh environments across extended beam-time campaigns. Delivered in a rugged Pelicase for safe transport worldwide.
Base configuration includes a 1:1 relay lens. Cooling and fast gating are available as factory-fitted upgrades. Typical lead time is under 4 weeks from order.
Prices exclude all customs duties and taxes. Shipments outside the EU may be subject to export control approval.
Download the full technical brochure for complete specifications, or get in touch with our team for configuration advice and a quotation tailored to your application.
